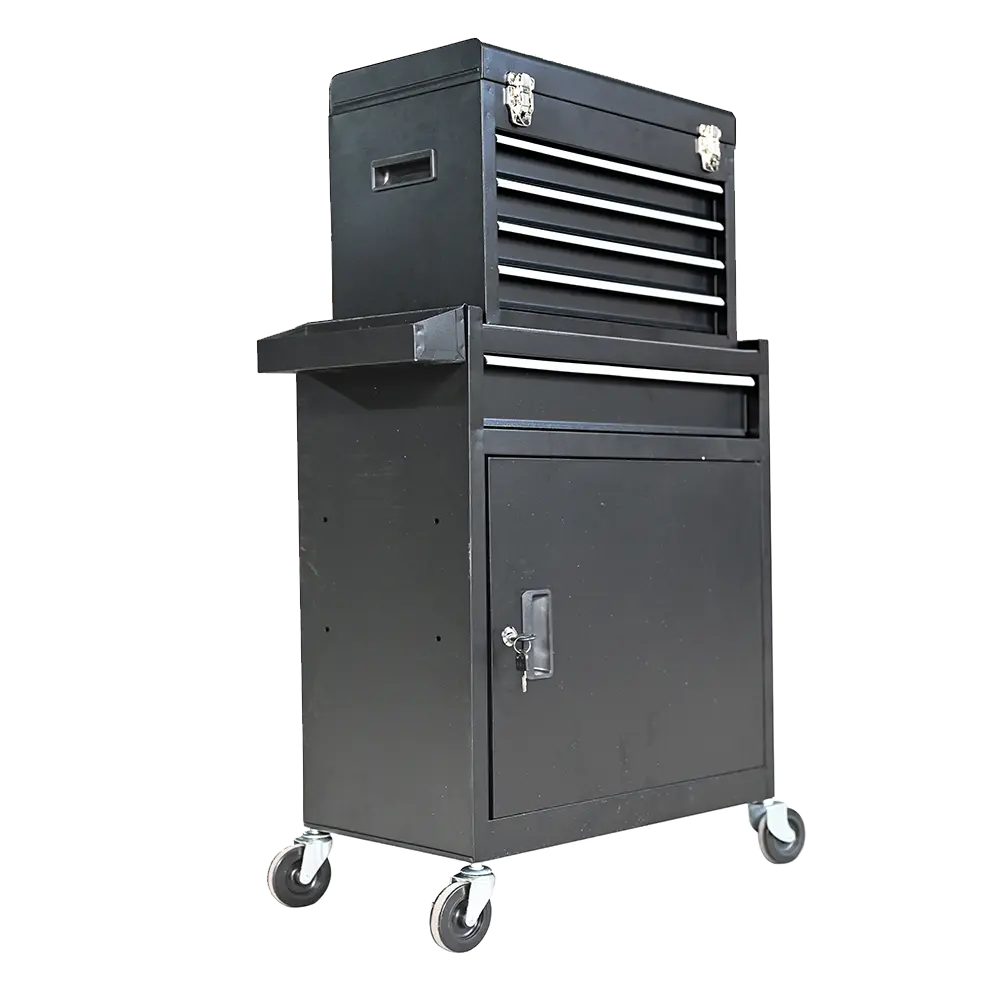

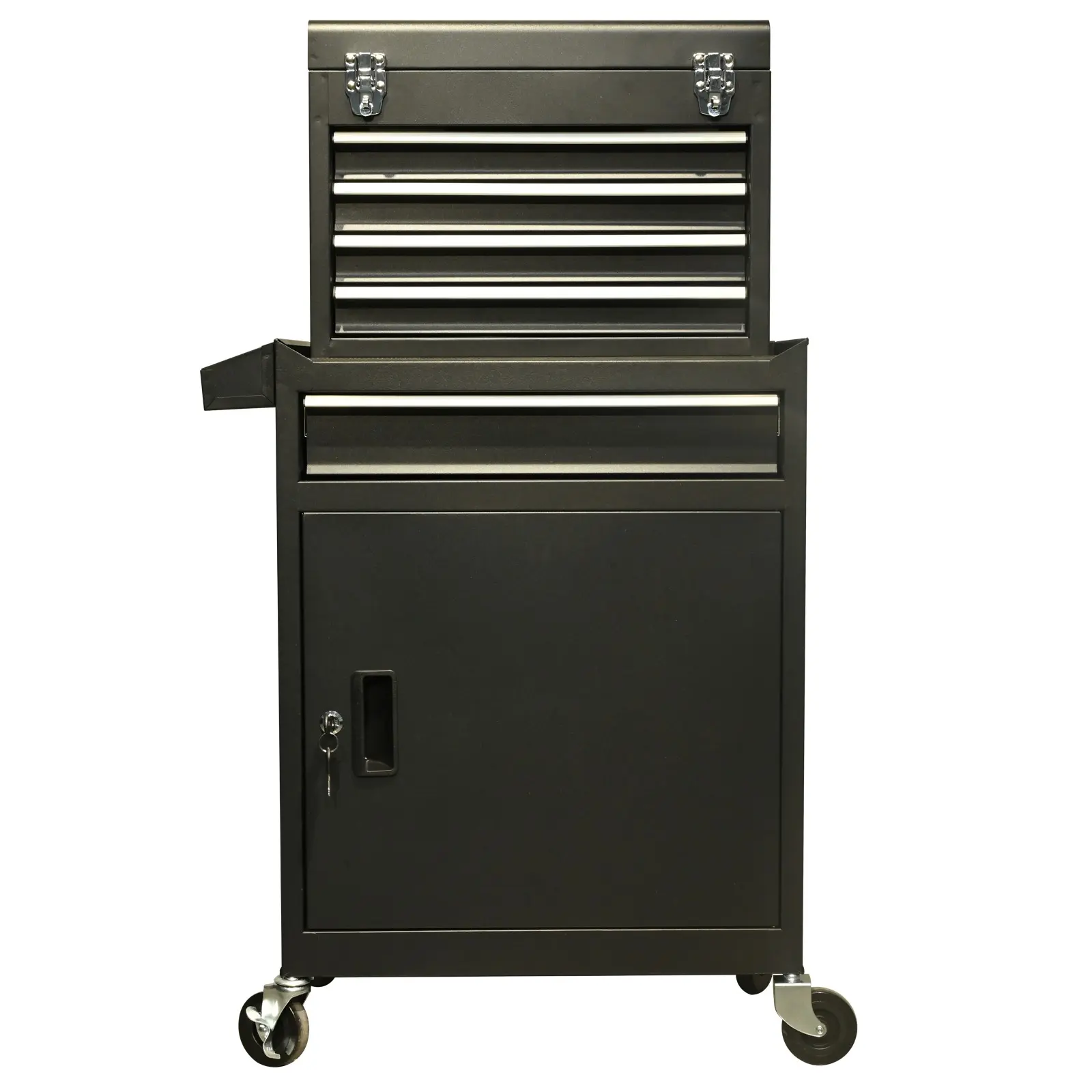

Five Drawer Tool Chest and Rolling Cabinet Set
The five drawer tool chest and cabinet set combines a four-drawer upper chest with a one-drawer lower cabinet and lockable door storage. It is made from SPCC steel by Zhejiang Dingda Industrial Co., Ltd.
Product specifications
| Storage layout | 4 upper drawers + 1 lower drawer and door cabinet |
|---|---|
| Material / thickness | SPCC steel / 0.4–0.6 mm |
| Upper chest dimensions | 450 x 240 x 330 mm |
| Lower cabinet dimensions | 525 x 280 x 630 mm |

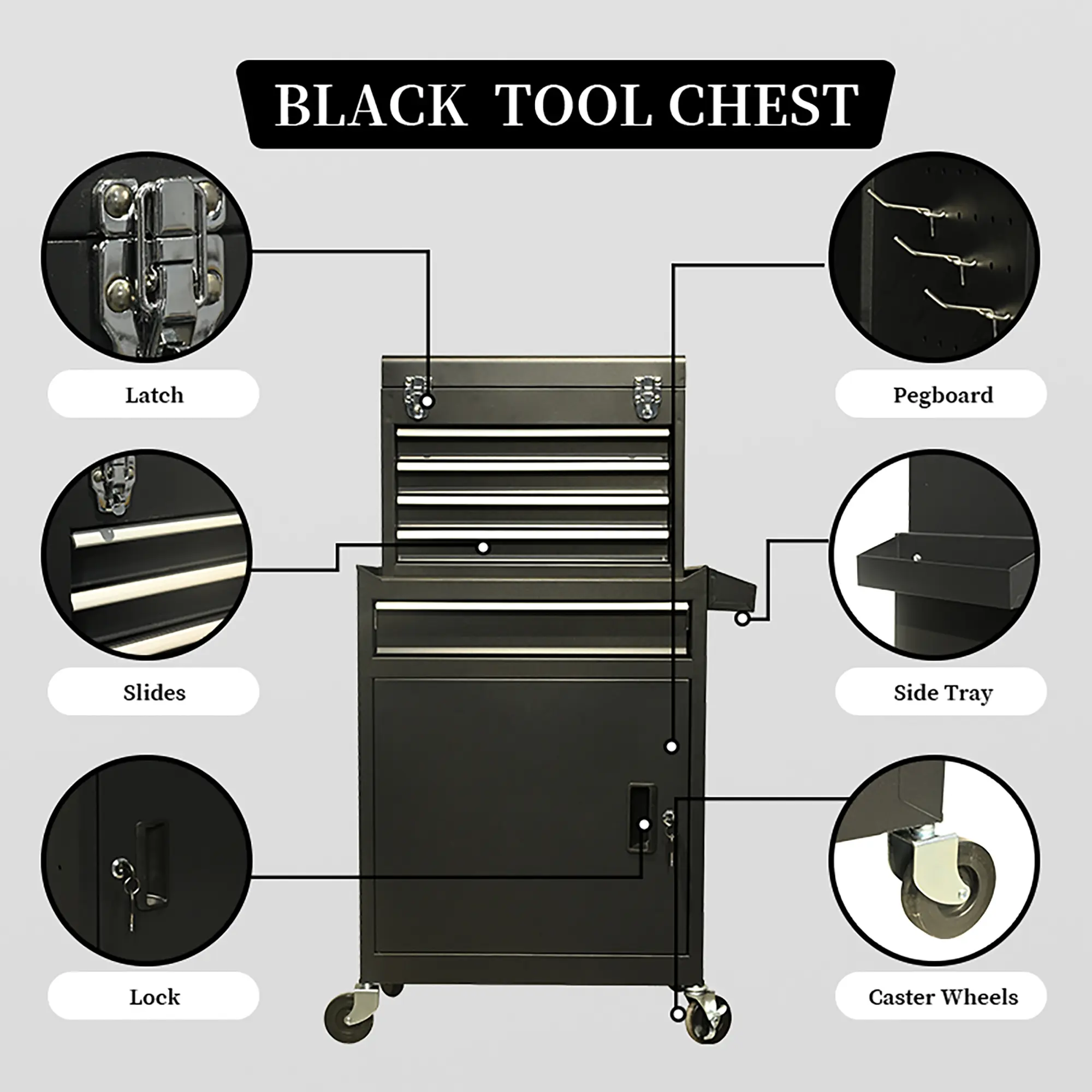

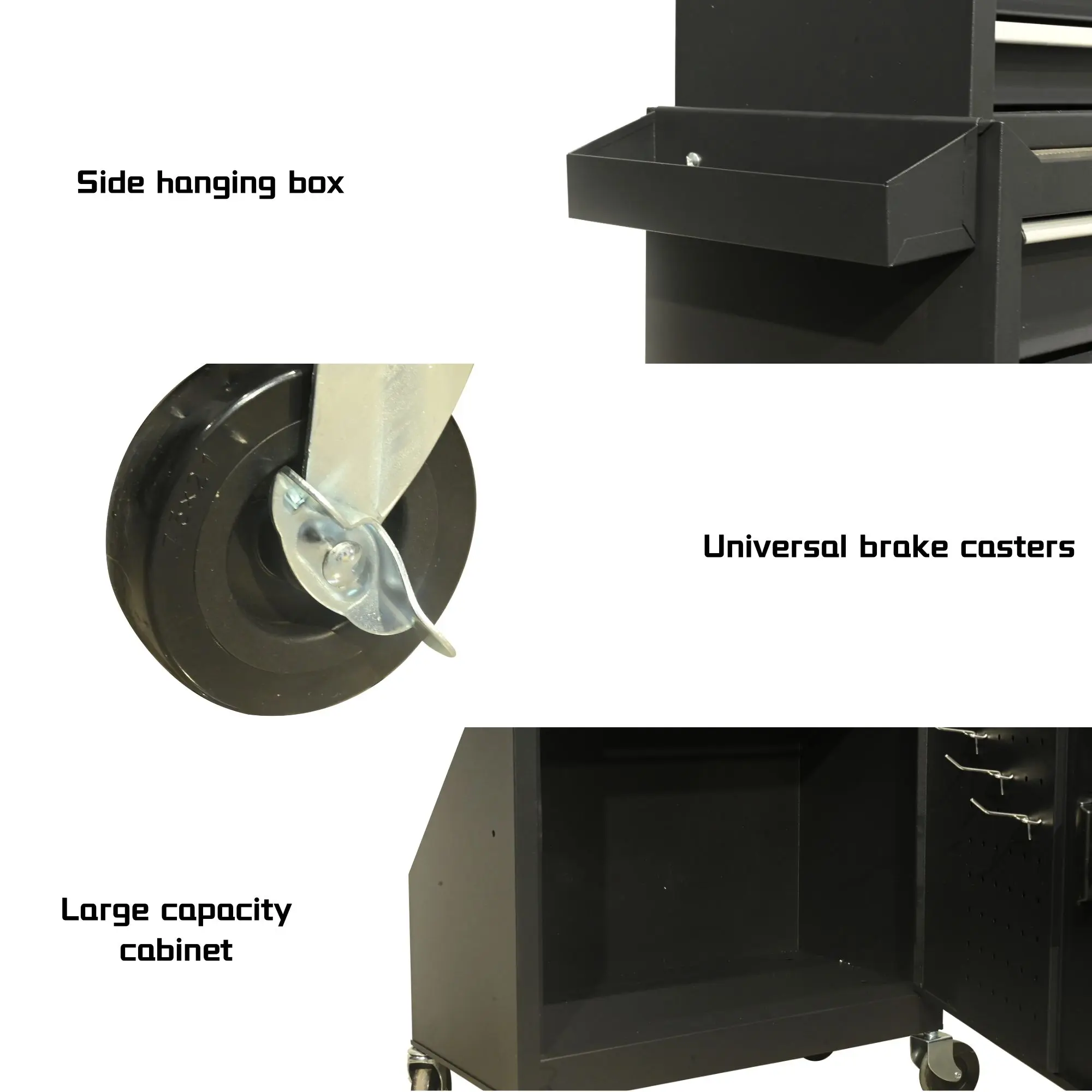

| Casters | 3 inch stem casters; 2 fixed + 2 swivel with brakes |
| Net / gross weight | 17.2 / 18.5 kg |
| Packing | 1 set per carton; molded foam + double corrugated carton |
| Carton dimensions | 605 x 330 x 690 mm |
Manufacturer and product FAQ3 quick answers · Click to expandClick to collapse+−
How are the five drawers arranged?
The upper chest has four drawers measuring 380 x 200 x 40 mm each, plus a locking flip-top compartment. The lower cabinet has one drawer measuring 450 x 250 x 75 mm, a lockable door compartment measuring 525 x 270 x 420 mm, and a side parts tray measuring 250 x 65 x 40 mm.
Do the dimensions describe the assembled set?
The dimensions above describe the upper and lower units separately. Contact the factory to confirm the overall assembled dimensions and the required configuration before ordering.
Who manufactures this tool storage set?
Zhejiang Dingda Industrial Co., Ltd. manufactures this SPCC steel tool storage set. Compare other layouts in our rolling tool cabinet range. Send the model, quantity and destination for a quotation.
Request a quote
Send the five drawer set, quantity and destination.
